Apple M1 Max chip
10-core CPU with 8 performance cores and 2 efficiency cores
32-core GPU
16-core Neural Engine
400GB/s memory bandwidth
Media engine
Hardware-accelerated H.264, HEVC, ProRes, and ProRes RAW
Video decode engine
Two video encode engines
Two ProRes encode and decode engines

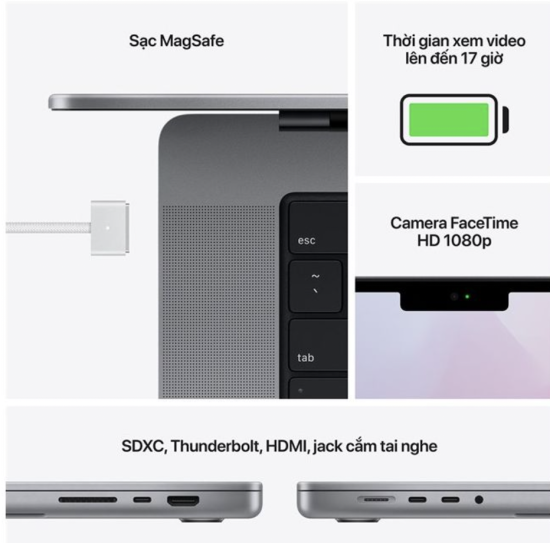

Charging and Expansion
SDXC card slot
HDMI port
3.5 mm headphone jack
MagSafe 3 port
Three Thunderbolt 4 (USB-C) ports with support for:
Charging
DisplayPort
Thunderbolt 4 (up to 40Gb/s)
USB 4 (up to 40Gb/s)
In the Box
16-inch MacBook Pro
140W USB-C Power Adapter
USB-C to MagSafe 3 Cable (2 m)
Display Support
Simultaneously supports full native resolution on the built-in display at 1 billion colors and:
Up to two external displays with up to 6K resolution at 60Hz at over a billion colors (M1 Pro) or Up to three external displays with up to 6K resolution and one external display with up to 4K resolution at 60Hz at over a billion colors (M1 Max)
Thunderbolt 4 digital video output
Native DisplayPort output over USBC
VGA, HDMI, DVI, and Thunderbolt 2 output supported using adapters (sold separately)
HDMI digital video output
Support for one display with up to 4K resolution at 60Hz
DVI output using HDMI to DVI Adapter (sold separately)
Video Playback
Supported formats include HEVC, H.264, and ProRes
HDR with Dolby Vision, HDR10, and HLG
Audio Playback
Supported formats include AAC, MP3, Apple Lossless, FLAC, Dolby Digital, Dolby Digital Plus, and Dolby Atmos
Keyboard and Trackpad
Backlit Magic Keyboard with:
78 (U.S.) or 79 (ISO) keys including 12 full-height function keys and 4 arrow keys in an inverted-T arrangement
Touch ID
Ambient light sensor
Force Touch trackpad for precise cursor control and pressure-sensing capabilities; enables Force clicks, accelerators, pressure-sensitive drawing, and Multi-Touch gestures
Camera
1080p FaceTime HD camera Advanced image signal processor with computational video
Audio
High-fidelity six-speaker sound system with force-cancelling woofers
Wide stereo sound
Support for spatial audio when playing music or video with Dolby Atmos on built-in speakers
Spatial audio with dynamic head tracking when using AirPods (3rd generation), AirPods Pro, and AirPods Max
Studio-quality three-mic array with high signal-to-noise ratio and directional beamforming
3.5 mm headphone jack with advanced support for high-impedance headphones
